Grind gauge

Grind Gauges / Automatic Dispertion Inspection machine
Inspections for ink, paint, cosmetics, food, ceramics, medicine, plastics, cement, and etc.
Whether the particle has been uniformly distributed or existence of a rough particle is inspected.

Issoku grind gauge is proven by the of precision working technology.
Grind gage is used to inspect for seize of particles of ink, paint, cosmetics, food, ceramics, medicine, plastics, cement, and etc. And also evaluates distribution of particles.

It is an useful instrument for many industrial field. Grind gauge is sometimes called as Grind meter.

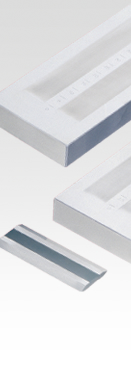

Grind Gauges

■Use  Grrind Gauges is used to measure grain sizes of power materials like paine,ink,cosmetics,foods,drug,plastic,cement or ceramic and to assess its granularity(uniform dispersion/kneading condition).
■How to use At first,to drop the ink onto groove of gauge adn pull the scraper this side applying it to gauge vertically.Next,to observe adn assess the pattern shaped by grains of powder meterials.(see the picture right hand)
■Asessment method ・Asessment by Lines method To read scale at the position where beyond three lines of over 10mm width appear consecutively side by side.To repeat this way in three times generally.The mean value in three times shall be applied in this measurement. ・Assessment by Distribution map method To lay the gauge and observe from position at 20~30°oblique above.Next,to read scale at the position where grains start to be in tight formation.

Grind Gauge
The download of catalogue

Automatic Dispertion Inspection machine

Automatic Dispertion Inspection machine

Technology and sense (Visual recognition) of skilled worker is normally required to judge result of grind gauge measuerment, and record of result is not remained because of wiping sample after checking.
Our Vertical Form Checker solve these problem, succeeded in sweeping aromatically under the same condition.
Information management is supported by database result of quantitative analysis with image recognition and traceability is insured by Vertical Form Checker.

features:
Repeatability of sweeping is insured by setting pressing pressure and sweep speed by sweep function.(Pressurization can be changed)
Can be recorded by recording and playback function as follows.
Image of imaging and result of image, gauge information,
time- stamp, operator, etc.
For more information, please refer to catalog.
